Began rewiring algae centrifuge system, which had many frayed wires. Added Romex connector to entrance box on motor. I was confused by the wiring, as it had two green wires.
Cord Motor NEMA
White Blue T1
Green1 White T2
Black Orange T3
Green 2 Frame(Ground)

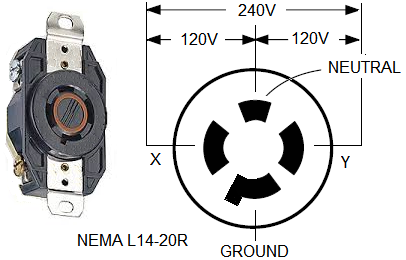

I realized the motor is a 220V motor, which means I will need 4-conductor cord+ a 4-pin plug and socket to wire it.
Motor speed controller needs to be enclosed in an electrical box. See https://www.automationdirect.com/static/manuals/gs1m/gs1m.pdf for more information.
